Introduction: The Silent Killer of Precision

You’ve selected a high-precision TOCO Linear Module and a powerful servo motor, but during commissioning, the system vibrates, overshoots, or runs hot.

The culprit is often not the hardware quality, but a poor Inertia Match. Understanding the ratio between the motor's rotor and the load it moves is critical for stable, high-speed automation.

1. What is Inertia Matching?

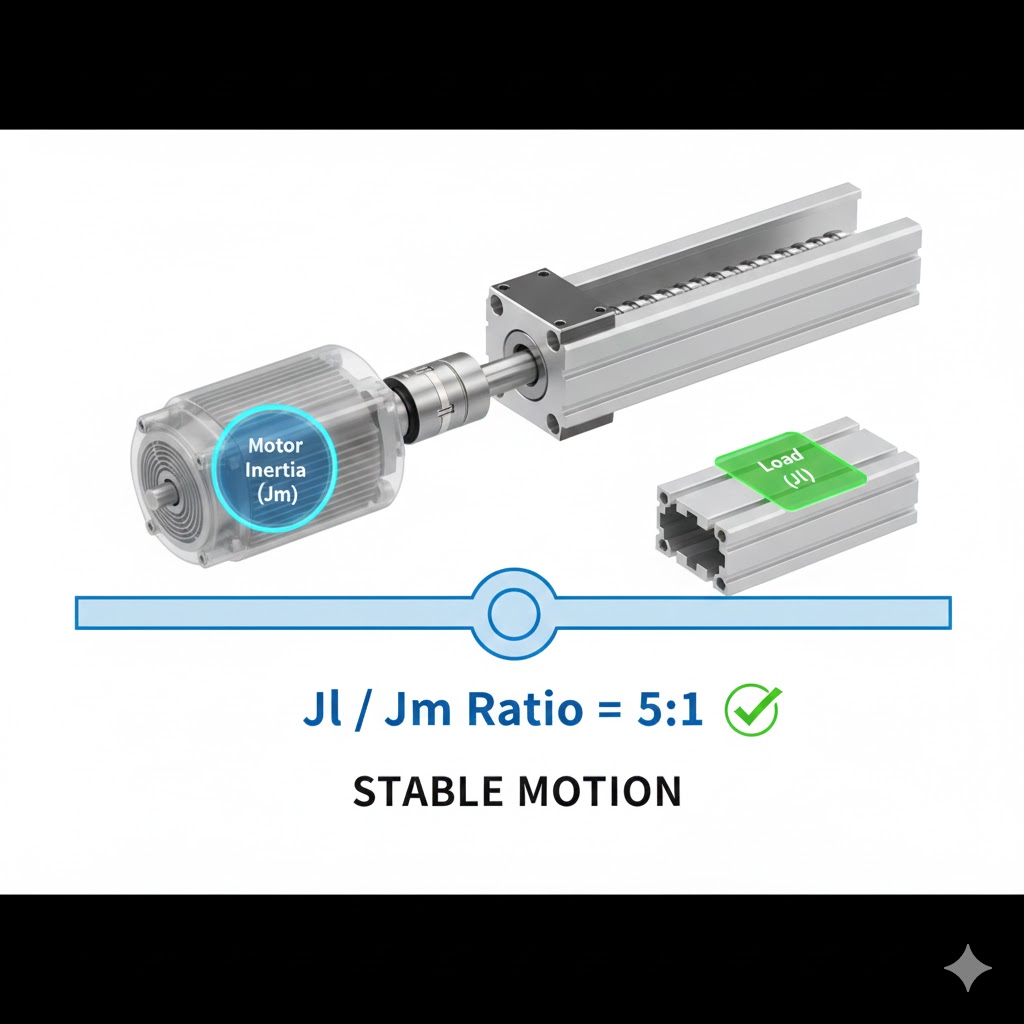

Inertia is an object's resistance to a change in its state of motion. In a linear system, the motor has its own internal inertia (Jm), while the linear module, ball screw, and payload create a reflected load inertia (Jl).

• The Golden Ratio: For high-performance applications, the ratio of Load Inertia to Motor Inertia (Jl / Jm) should ideally be 5:1 or lower.

• The Danger Zone: When the ratio exceeds 10:1, the motor’s control loop struggles to "find" its position, leading to resonance (humming) and poor settling times.

2. How the Linear Module Affects the Equation

The mechanical components of your TOCO module act as a bridge that modifies the inertia the motor "feels."

• Ball Screw Lead: A smaller lead (e.g., 5mm) acts like a high-ratio gearbox, significantly reducing the reflected inertia.

• Component Weight: The lightweight aluminum carriage of a TOCO module helps keep the "tare" inertia low, allowing for more payload capacity.

• Coupling Stiffness: A soft coupling can introduce "lost" inertia, making the system behave as if the mismatch is worse than it actually is.

3. Why "Over-Sizing" Isn't Always the Answer

Many engineers try to fix a mismatch by simply buying a bigger motor. However, a larger motor has a larger rotor (Jm). If the motor is too large for a lightweight Mono Stage, the system becomes "sluggish" because the motor is spending all its torque just moving its own internal mass.

4. Technical Tips for a Perfect Match

1. Optimize the Lead: If inertia is too high, decrease the ball screw lead.

2. Use Gear Reduction: A 3:1 or 5:1 planetary gearbox can reduce reflected inertia by the square of the ratio (1/N²).

3. Tune the Drive: Use the auto-tuning features of your servo drive, but remember: software cannot fix a 50:1 mechanical mismatch.
