Linear Guides: The Foundation of Precision Motion

Linear guides are critical components in mechanical systems that require precise, controlled motion along a straight axis. They support and guide moving elements (such as slides or carriages) while minimizing friction and ensuring stability. Widely used in automation, machining, robotics, and packaging equipment, linear guides come in various profiles, with round and square designs being two of the most common. The choice between these profiles hinges on factors like load capacity, precision requirements, installation conditions, and cost constraints. Understanding their key differences is essential for optimizing system performance and cost-effectiveness.

Linear Guide Selection: Round vs. Square Rails

Engineers face the challenge of choosing the right linear-motion components for their applications. Round and square profile rails offer distinct advantages based on specific requirements. While square rails historically involved higher costs due to precision grinding, advancements in manufacturing have made them competitive across many applications.

The choice between round and square rails depends on factors like load capacity, stiffness, accuracy, smoothness, size, and costs.

Understanding their characteristics is essential:

Fundamental Attributes:

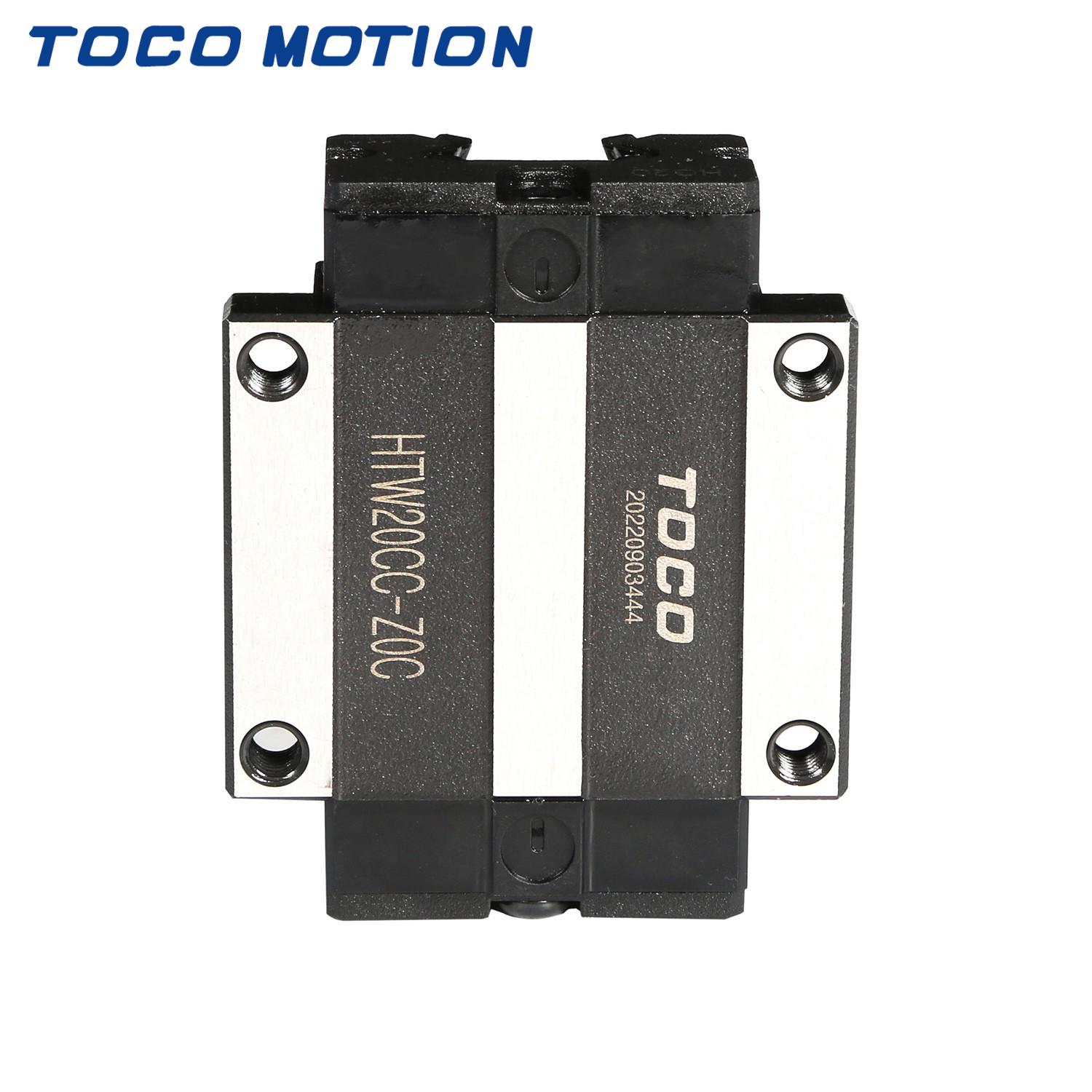

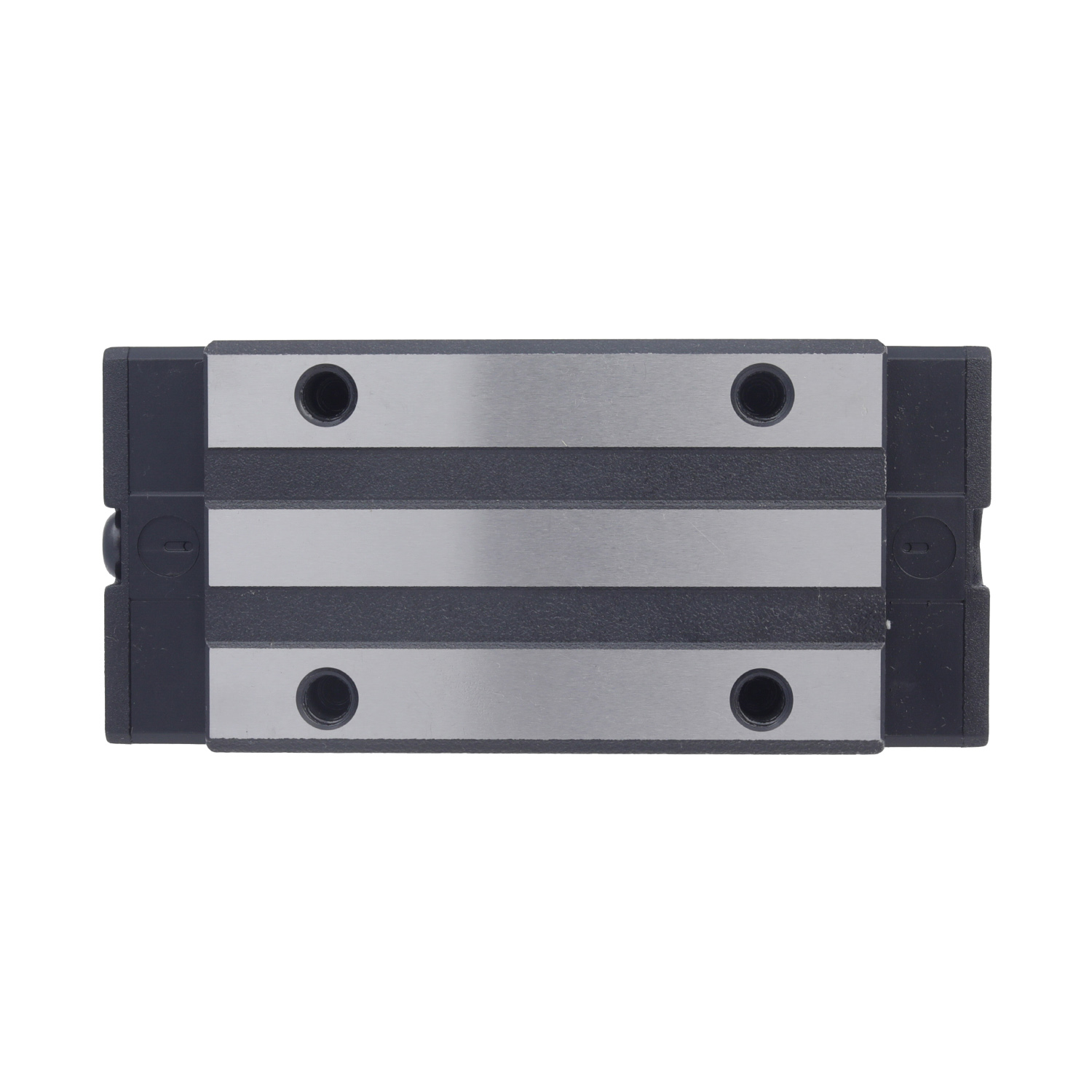

● Square Profile Rails feature flat tops and concave sides with precision-ground ball tracks. Ideal for high-load applications (e.g., machine tools), they cradle balls under load, expanding contact areas for enhanced capacity. Preloading up to 13% of dynamic load reduces deflection, resulting in stiffness values of 1-4 μm/kN. Positioning accuracy ranges from 0.0002 to 0.001 inches over 10 feet, with parallelism of 3-10 μm/m. Moment load performance often surpasses round rails.

● Round Rails with ball-bushing designs offer cost advantages and tolerance for misalignment. Light preload (1-2% of dynamic load) ensures smooth operation, and point contact between balls and rails minimizes scuffing. They can run smoothly on surfaces with flatness errors up to 150 μm/m, suitable for welded frames or factory floors. Travel straightness is 0.01 inches over 10 feet, and they can span gaps up to 24 shaft diameters, ideal for gantry systems.

Design Considerations:

● Square Rails require tight parallelism (several micrometers) to prevent binding. Continuous support is essential; gaps are not intended. Moment handling in all directions eliminates the need for dual-rail alignment. However, wide footprints may require two guides for off-center loads.

● Round Rails excel in cost-effective installation on imperfect surfaces. Ball bushings can be integrated directly into components or mounted in pillow blocks, simplifying modifications.

Application Insights:

● Space Constraints: Square rail bearings are more compact than round bushings of similar load rating. Dual-shaft linear guides save space but may not suit large overhung loads.

● Design Flexibility: Modifying round systems is easier than square ones. Round shafts can double as structural members.

● Rigidity vs. Compliance: Square rails offer high rigidity but demand precise mounting surfaces. Compliant round rails suit applications prioritizing smooth travel and low installation costs (e.g., packaging equipment).

● Durability: Self-lubricating designs extend life. Critical applications must account for real-world conditions and safety factors.

Common Mistakes:

Avoid using multiple parallel rails for heavy loads; two is optimal. Overloading the system with more than two rails can cause static indeterminacy, binding, and premature wear.

Conclusion: The optimal choice hinges on application demands. Round rails suit cost-effective, compliant systems, while square rails excel in high-precision, rigid applications. Careful evaluation of load, accuracy, space, and installation constraints ensures the right selection.
