Introduction: Where Precision Meets Patient Care

In medical devices and laboratory automation, the requirements for linear motion change drastically. Whether it is a DNA sequencing robot, an automated pharmacy dispenser, or a high-end imaging table (MRI/CT), the priorities shift toward low noise, zero contamination, and extreme reliability.

TOCO provides specialized solutions designed to operate in these sensitive environments where a single drop of leaked grease or a noisy motor can compromise the entire operation.

1. Choosing the Right Material: Stainless vs. Chrome

In labs where harsh cleaning chemicals or biological samples are present, standard carbon steel is a liability.

• Stainless Steel Rails & Balls: Essential for diagnostic equipment that requires frequent sterilization.

• Raydent or Black Chrome Coating: An excellent alternative for humidity resistance without the full cost of solid stainless steel.

• Plastic/Polymer Components: Using high-grade medical plastics for recirculation to ensure zero rust and lower weight.

2. Quiet Operation for Clinical Settings

A hospital or laboratory should be a quiet environment. Standard ball screws can be noisy at high speeds due to the "clacking" of steel balls.

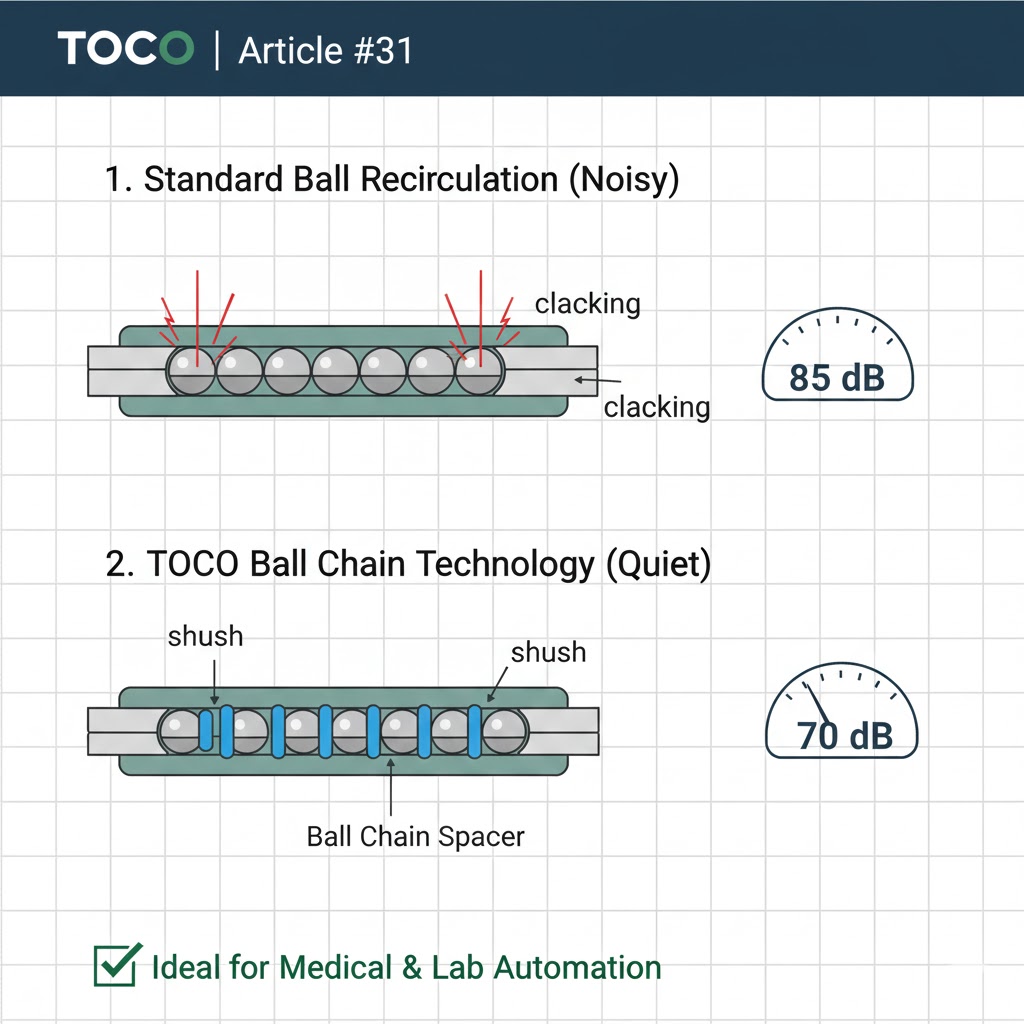

• Ball Chain Technology: TOCO’s ball chain carriages use a flexible spacer between balls. This prevents ball-on-ball impact, reducing noise levels by up to 10–15 decibels.

• Optimized Lead Selection: Using a higher lead (longer distance per turn) allows for slower motor RPMs, which significantly lowers the high-frequency whine of the system.

3. Zero-Leakage Lubrication Protocols

Traditional grease can "outgas" or drip, which is unacceptable in a lab setting where it might contaminate a patient's sample.

• Cleanroom Grease: We use low-vapor-pressure lubricants that stay exactly where they are applied.

• Dry Lubrication: For some applications, we offer "self-lubricating" sliders that use a solid polymer film, eliminating the need for liquid oil or grease entirely.

4. Compact Designs for Benchtop Equipment

Medical devices are often designed to sit on a desk or a lab bench. Space is at a premium.

• Miniature Series: TOCO’s TGS series provide high rigidity in a footprint as small as 7mm.

• Integrated Actuators: Combining the motor and the ball screw into a single unit (Linear Actuators) saves space and reduces the number of parts that need cleaning.

5. Certification and Compliance

When designing for medical use, remember that components must often meet specific standards:

• RoHS/REACH Compliance: Ensuring no hazardous substances are present in the materials.

• FDA-Approved Lubricants: Necessary if the equipment comes into indirect contact with pharmaceuticals or food.
