What is a ball screw used for? The disadvantage and how to select proper one.

What is a ball screw used for?

What is the disadvantage of a ball screw?

Are ball screws better than lead screws?

What is the difference between a ball screw and a trapezoidal screw?

What is a ball screw used for?

A ball screw is a mechanical component that is used for converting rotational motion into linear motion, or vice versa. It consists of a screw shaft with a helical groove and a nut that has matching threads. As the screw rotates, the nut moves along the shaft, providing precise and smooth linear motion. Ball screws are commonly used in various applications, including machine tools, robotics, aerospace, and medical equipment, where precise positioning and motion control are required.

What is the disadvantage of a ball screw?

One of the main disadvantages of a ball screw is its higher cost compared to other types of screws, such as lead screws. This is due to the more complex manufacturing process and the higher precision required for the ball screw's components. For example, the manufacturing cost of a ball screw may be up to 50% higher than that of a lead screw with similar specifications. Additionally, ball screws are more sensitive to contamination and require proper sealing and lubrication to maintain their performance and lifespan. They are also less self-locking than lead screws, which means they may not be suitable for applications where the load needs to be held in place without continuous power input.

Are ball screws better than lead screws?

Ball screws are generally considered better than lead screws in terms of performance and efficiency. Ball screws have a higher lead accuracy, which refers to the precise distance a screw travels in one rotation. This results in more precise positioning and less positional error. The higher lead accuracy of ball screws ensures consistent movement and improved overall performance in various applications. They also offer higher efficiency due to the reduced friction between the ball bearings and the screw shaft. This allows for faster motion and greater speed control. Ball screws are more durable and have a longer lifespan than lead screws because the ball bearings help to distribute the load evenly. However, the choice between a ball screw and a lead screw depends on the specific application requirements and budget constraints.

What is the difference between a ball screw and a trapezoidal screw?

The difference between a ball screw and a trapezoidal screw lies in their thread profiles and the mechanism of motion conversion. A ball screw, as mentioned earlier, uses ball bearings within a helical groove to convert rotational motion into linear motion. The ball bearings provide low friction and high efficiency, making it suitable for precise and rapid movements. On the other hand, a trapezoidal screw has a trapezoidal thread profile and relies on direct contact between the screw and the nut for motion conversion. This results in higher friction and lower efficiency compared to a ball screw. Trapezoidal screws are typically used in applications where cost is a primary consideration, and the required precision and efficiency are not as high as those needed in ball screw applications.

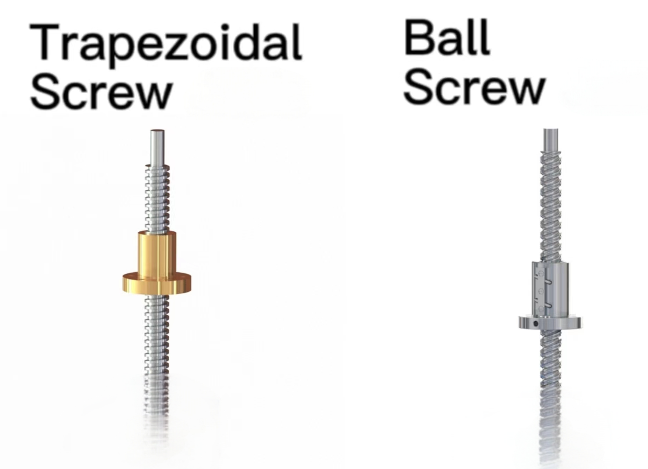

To better understand these differences, refer to Figures 1 and 2, which illustrate the thread profiles of a ball screw and a trapezoidal screw, respectively
