Introduction: The Invisible Enemy of Accuracy

In high-precision machining, the difference between a perfect part and a scrap piece is often measured in microns. While you may have a C3-grade ball screw, that accuracy can vanish within an hour of operation. Why? Friction-induced heat.

As a ball screw rotates at high speeds, friction between the balls and the raceway generates heat. This heat causes the steel to expand—a phenomenon known as Thermal Expansion. If a 1-meter ball screw heats up by just 10℃, it can grow by over 100μm, leading to significant positioning errors.

1. The Physics of the Problem

Steel has a coefficient of linear thermal expansion of approximately . In practical terms, as the temperature rises, the "lead" (the distance traveled per revolution) of the screw stretches. In a closed-loop system, the motor might think it has moved 500mm, but due to expansion, the actual position might be 500.05mm.

2. Strategies to Combat Thermal Growth

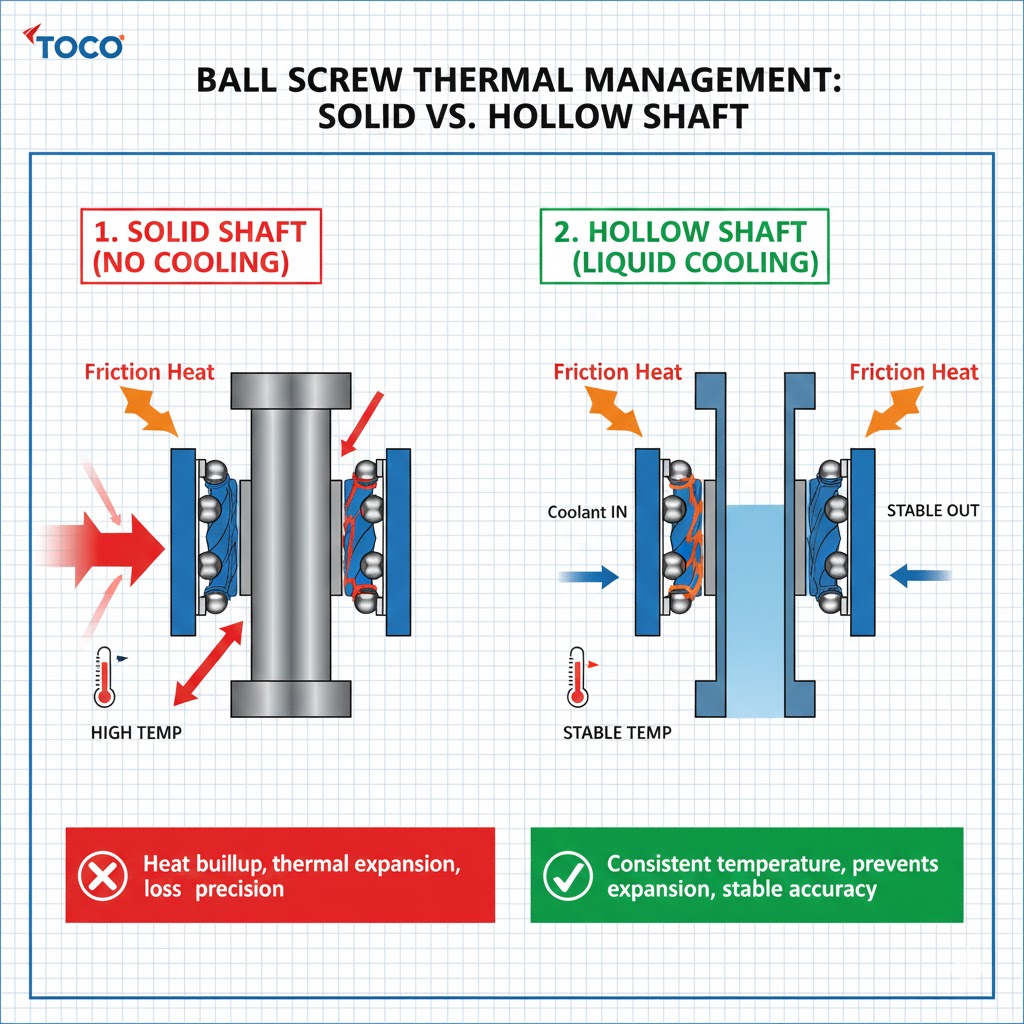

A. Hollow Shaft Cooling (The Premium Solution)

For high-speed CNC centers, the most effective way to manage heat is from the inside out.

• How it works: The ball screw is manufactured with a hollow center. A cooling fluid (usually oil) is circulated through the shaft to carry away heat directly from the source.

• Benefit: This maintains a constant temperature throughout the production cycle, ensuring "Cold Start" accuracy remains identical to "Mid-Day" accuracy.

B. Pre-Tensioning (Thermal Compensation)

If liquid cooling is too expensive, engineers use Pre-tensioning.

• How it works: During installation, the ball screw is physically "stretched" using specialized support units. It is tensioned to a length that accounts for the expected thermal expansion.

• Benefit: When the screw heats up and tries to expand, it simply "relaxes" into its intended length rather than pushing the supports and causing misalignment.

C. Selection of High-Efficiency Lubricants

Friction is the source of heat. Using a lubricant with the correct viscosity for your operating speed is critical. High-speed applications require lighter oils or specialized greases that reduce "churning" heat—the friction caused by the lubricant itself resisting the movement of the balls.

3. The TOCO Approach: Precision Stabilization

At TOCO, we help our clients calculate the "Heat Balance" of their systems. We provide:

1. Hollow Shaft Customization: Available for our high-end ground ball screw series.

2. High-Rigidity Support Units: Designed to handle the high axial forces required for effective pre-tensioning.

3. Thermal-Stabilized Materials: Our heat-treatment processes ensure that the internal grain structure of the steel is stable, preventing permanent "growth" over years of use.

Conclusion: Stability is the Key to Precision

Don't let heat dictate your tolerances. By implementing cooling or pre-tensioning strategies, you can ensure that your TOCO components deliver the same sub-micron precision at 4:00 PM as they did at 8:00 AM.
