Introduction: The Small Scale Revolution

In the past, industrial automation was synonymous with massive steel rails and heavy machinery. Today, the frontier of innovation is shifting toward the "micro." From desktop 3D printers and semiconductor inspection tools to handheld medical devices, the challenge is no longer just about moving heavy loads—it’s about moving small loads with sub-micron accuracy in extremely confined spaces.

Miniature Linear Guides (typically defined by rail widths of 15mm or less) are the solution to this "space vs. precision" puzzle.

1. Anatomy of a Miniature Guide

Designing a linear guide at a miniature scale isn't as simple as just shrinking a standard one. It requires specialized engineering:

• Stainless Steel Construction: Because these are often used in electronics or labs where rust is unacceptable, most miniature guides are made of 440C Stainless Steel as standard.

• Ball Retention Systems: To prevent the microscopic steel balls from falling out during installation, miniature carriages often feature integrated wire retainers.

• The "Wide" Rail Option (MGW Series): In applications where space is too tight for two parallel rails, a single "Wide" miniature rail is used to handle moment loads (twisting forces) that would normally tip a standard narrow rail.

2. Key Applications for Micro-Motion

A. Semiconductor & PCB Assembly

Inside a chip-mounting machine, components move at lightning speeds. Miniature guides provide the low-mass, high-speed stability required to place components with perfect repeatability without the bulk of traditional hardware.

B. High-End 3D Printing & Scanning

For professional-grade desktop 3D printers or dental scanners, smoothness is everything. The low-friction design of miniature guides eliminates the "stutter" often found in cheaper rod-and-bushing systems, leading to flawless surface finishes.

C. Optical & Lens Positioning

In laser cutting or camera focus systems, the moving mass must be kept to a minimum to allow for high-frequency adjustments. Miniature guides offer the necessary rigidity with a fraction of the weight.

3. Design Challenges: The "Tight Tolerance" Factor

When working with miniature components, the margin for error is nearly zero.

• Mounting Surface Flatness: Because miniature rails are thin, they will follow any curve or bump in the mounting surface. The base must be ground perfectly flat to prevent "binding."

• Tightening Torque: Over-tightening a mounting bolt on a 7mm rail can actually deform the rail itself. Using a calibrated torque wrench is mandatory for micro-motion assembly.

4. The TOCO Miniature Range

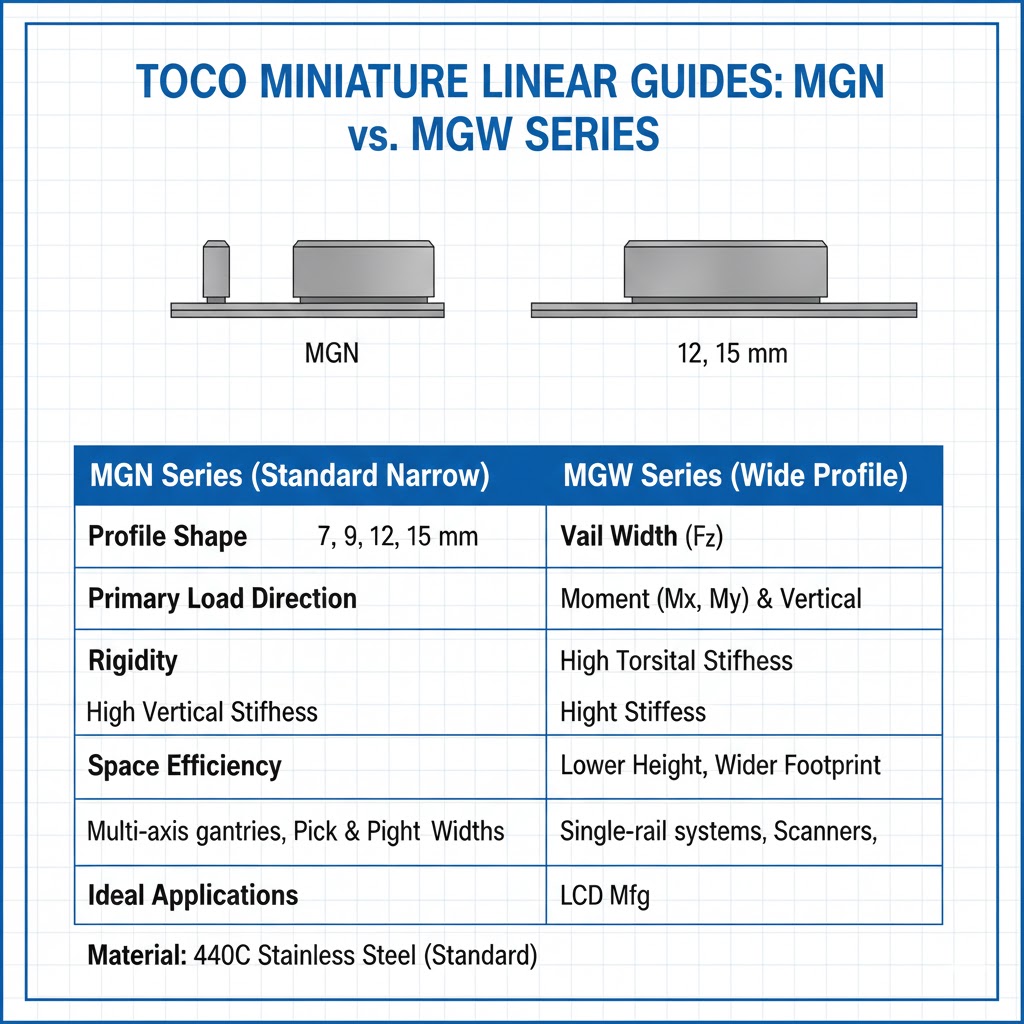

TOCO’s miniature series (MGN and MGW) is engineered for those who need "Big Precision in Small Packages." We offer:

1. Sizes from 3mm to 15mm.

2. Customized Preload: Even in miniature sizes, we offer Z0 (Light) and ZF (Clearance) options.

3. Interchangeability: Our carriages are designed to be compatible with global standard specifications, making it easy to upgrade your existing micro-systems to TOCO quality.
