Introduction: The "Gap" Between Success and Failure

In basic mechanical systems, parts often have a little "play" or clearance to allow them to move freely. However, in high-precision CNC machining or semiconductor assembly, even a microscopic gap of 5 μm can cause vibrations that ruin a workpiece.

This is where Preload comes in. Preload is the intentional internal force applied to the rolling elements of a linear guide to eliminate clearance and increase the system's overall stiffness.

1. How is Preload Achieved?

Preload is not something you "adjust" with a screw after installation. It is built into the carriage during manufacturing.

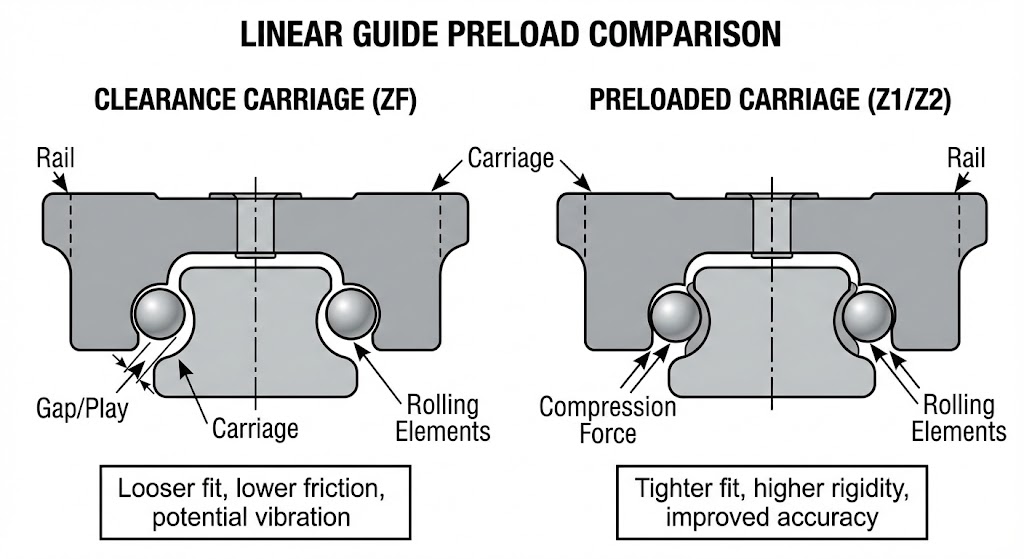

The most common method is using oversized rolling elements. By installing balls or rollers that are slightly larger than the space between the carriage and the rail, the components are under a constant state of compression. This ensures that the rolling elements are in permanent contact with the raceways, even when no external load is applied.

2. Why Preload Matters: The 3 Major Benefits

A. Increased Rigidity (Stiffness)

Rigidity is a measure of how much a system deflects under a load. A preloaded linear guide behaves like a solid unit. When a cutting tool hits a metal block in a CNC machine, a preloaded guide resists the "push-back," ensuring the tool stays exactly on path.

B. Improved Positional Accuracy and Repeatability

Without preload, the carriage might "float" slightly within the clearance gap. Preload "centers" the carriage perfectly on the rail, eliminating any "dead zones" when the machine changes direction (similar to eliminating backlash in ball screws).

C. Vibration Damping

Vibration is the enemy of a smooth surface finish. Preload creates internal tension that helps absorb and dampen high-frequency vibrations during high-speed operation, leading to quieter machines and better-quality parts.

3. Choosing Your Preload Class

More preload is not always better. Increasing preload increases friction and heat, which can shorten the lifespan of the guide if not managed correctly.

4. The TOCO Advantage: Precision Calibration

At TOCO, we understand that preload is a delicate balance. Too little, and you lose accuracy; too much, and you lose energy efficiency and longevity. We offer custom preload calibration for our OEM/ODM partners, ensuring that your linear guides are optimized for your specific load profile and duty cycle.
