Introduction: The High-Pressure World of Food Processing

In food and beverage production, "clean" is an understatement. Machinery must withstand daily high-pressure washdowns, caustic cleaning chemicals, and extreme temperature swings—all while ensuring zero contamination of the food product.

Standard industrial linear guides and ball screws would fail within days in these environments. To survive, linear motion components must be engineered for hygiene, durability, and safety.

1. The Stainless Steel Standard

The first line of defense in food-grade motion is the material.

• 440C Stainless Steel: For components requiring high hardness and load capacity (like ball screw shafts and linear rails), TOCO utilizes 440C stainless steel. It provides the necessary mechanical strength while resisting rust from moisture.

• 300-Series Stainless: For non-load-bearing parts, such as end caps or mounting hardware, 300-series stainless offers even higher corrosion resistance against acidic food products (like citrus or vinegar).

2. FDA-Approved Lubrication (H1 Grade)

In the food industry, lubrication is a "controlled substance." Standard industrial grease contains heavy metals and toxins that cannot come into contact with food.

• What is H1 Grease? H1 lubricants are "food-grade" greases approved for applications where incidental food contact may occur.

• TOCO’s Solution: We offer pre-lubricated carriages and nuts using high-performance H1 synthetic greases. these maintain their viscosity even during high-temperature steam cleaning.

3. Advanced Sealing: The "Washdown" Shield

The greatest threat to a linear guide in a bottling plant isn't the load—it's the cleaning crew. High-pressure water jets can easily blast grease out of a bearing or force contaminants in.

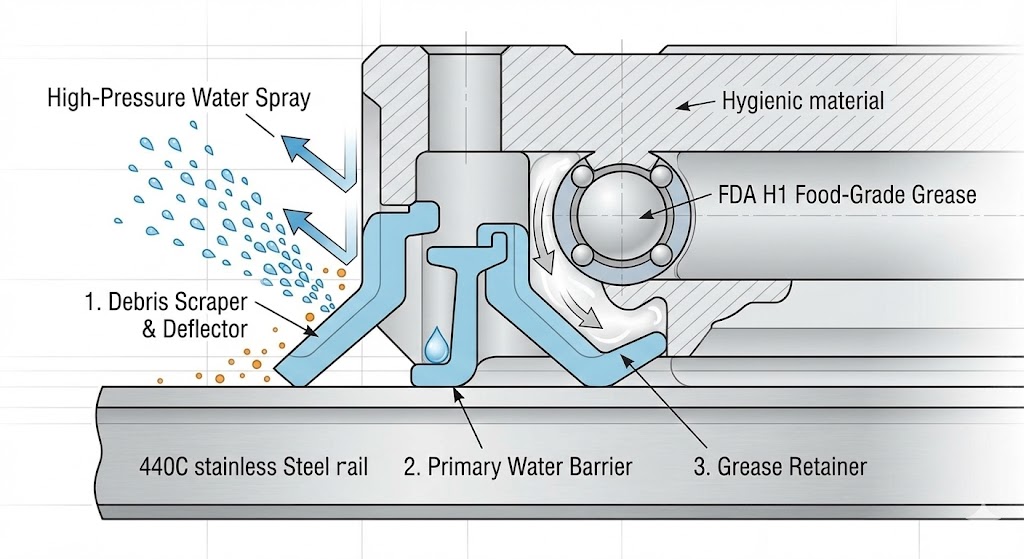

• Triple-Lip Seals: TOCO food-grade carriages feature specialized multi-lip sealing systems that act as a "pressure barrier."

• Scraper Plates: Stainless steel scrapers remove larger debris or "sticky" food residue from the rail before the seals pass over, preventing the seals from being torn or compromised.

4. Hygienic Design: Eliminating "Bacteria Traps"

Bacteria love corners, deep holes, and rough surfaces.

• Smooth Surface Finishes: Our food-grade components are polished to reduce surface porosity, making it harder for organic matter to stick.

• Capped Mounting Holes: We provide specialized plastic or stainless steel caps for rail mounting holes. This creates a flush, flat surface that is easy to wipe down and leaves no "pockets" for mold or bacteria to grow.

5. Summary: Industrial vs. Food Grade
