Introduction: Silence is a Sign of Quality

In a modern factory, a loud machine is often perceived as a poorly made machine. High-decibel "whining" or "clicking" from linear motion systems isn't just a nuisance for operators; it is a technical warning sign of friction, vibration, and impending wear.

For premium CNC builders and medical device manufacturers, noise reduction is a primary design goal. Reducing noise by just 3 dB actually reduces the sound energy by half. Here is how we engineer silence into TOCO linear systems.

1. The Source of the Sound: Ball Recirculation

The primary source of noise in ball screws and linear guides is the "impact" of the rolling elements.

• The "Click-Clack" Effect: As steel balls move through the raceway and enter the return tube (the recirculation path), they collide with each other and the walls of the return system.

• High-Speed Resonance: At high RPMs, these collisions happen thousands of times per second, creating a high-pitched whine.

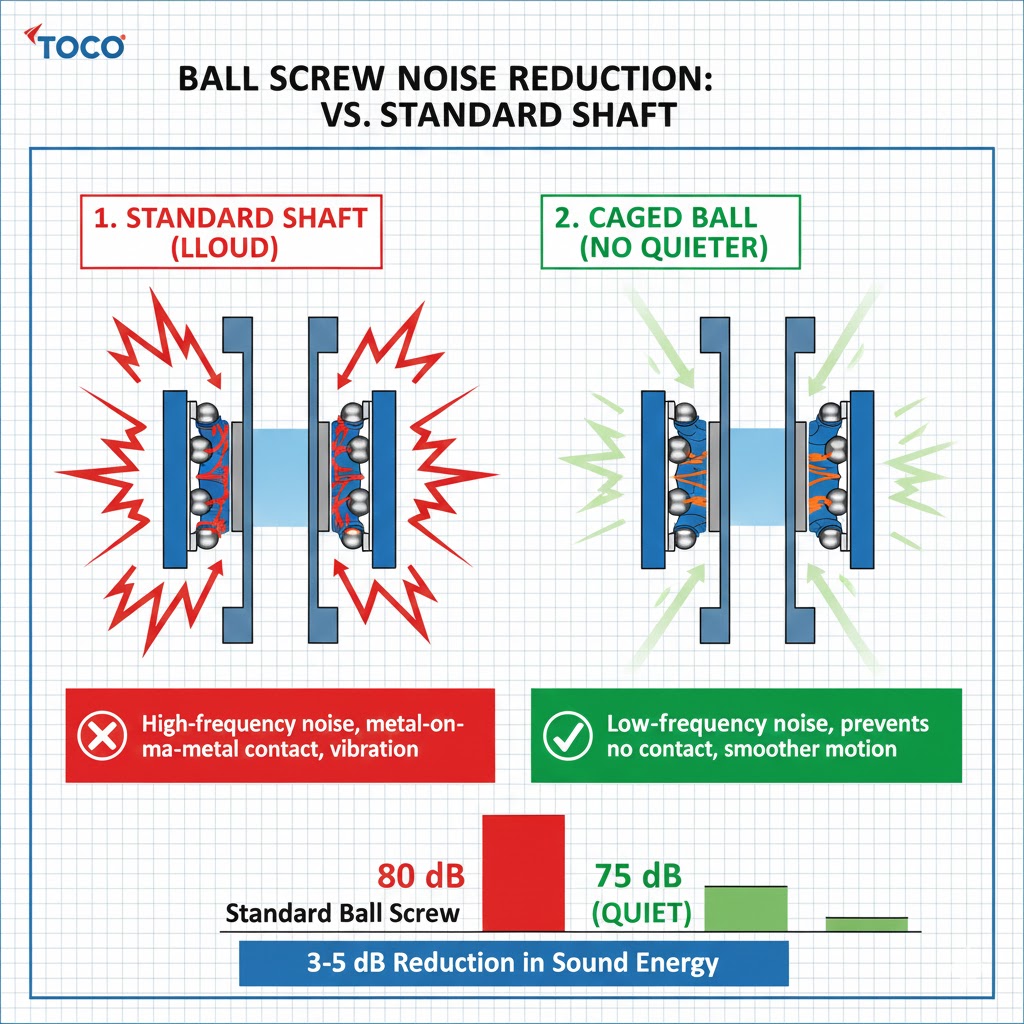

2. The Solution: Caged Ball Technology (Ball Spacers)

The most effective way to silence a linear system is to prevent the balls from touching each other.

• How it works: TOCO utilizes specialized "Ball Cages" or synthetic spacers between each rolling element.

• The Result: * No Metal-on-Metal Contact: The balls are held in a flexible ribbon, eliminating the "clicking" noise.

  • Lubricant Retention: The cages act as tiny reservoirs, keeping oil exactly where the balls need it.

  • Smoother Motion: Without balls "bumping" into each other, the torque fluctuations are minimized.

3. Optimizing the Recirculation Path

The geometry of the return tube matters. Standard industrial screws often have "abrupt" return paths.

• TOCO’s Tangential Return: We design our high-end ground ball screws with tangential return systems. This ensures the balls enter the return tube at a smooth angle rather than a sharp impact, drastically reducing vibration and noise.

4. The Role of Surface Finish and Preload

• Super-Finishing: A rough raceway creates "rolling noise." TOCO uses a proprietary grinding and polishing process to achieve a mirror-like surface finish (Ra ≦ 0.2μm), allowing the balls to glide silently.

• The "Preload" Balance: Too much preload increases friction and noise. Too little leads to vibration. Finding the "Goldilocks" zone of preload is essential for a quiet machine.

5. Application Spotlight: Quiet Environments

• Laboratory Automation: Where technicians work in close proximity to machines.

• 3D Printing: Especially for office-based "Prosumer" models.

• Premium CNC Centers: Where low vibration translates directly into a better surface finish on the workpiece.
