Introduction: Why Lubricate?

In a linear system, the rolling elements (balls) are under immense pressure. Lubrication serves three critical roles:

1. Reducing Friction: It creates a microscopic film that prevents metal-on-metal contact.

2. Heat Dissipation: It carries heat away from the contact points.

3. Corrosion Protection: It seals the high-carbon steel from oxygen and moisture.

The most common question we receive is: "Should I use grease or oil?" The answer depends entirely on your application’s speed, temperature, and environment.

1. Grease Lubrication: The "Set and Forget" Choice

Grease is the industry standard for about 90% of linear motion applications. It consists of a base oil held in a "thickener" (soap).

• Pros: * Stays in place: Doesn't leak out of the carriage easily.

  • Added Sealing: The thickness of the grease acts as an extra barrier against dust.

  • Lower Maintenance: Requires less frequent intervals than oil.

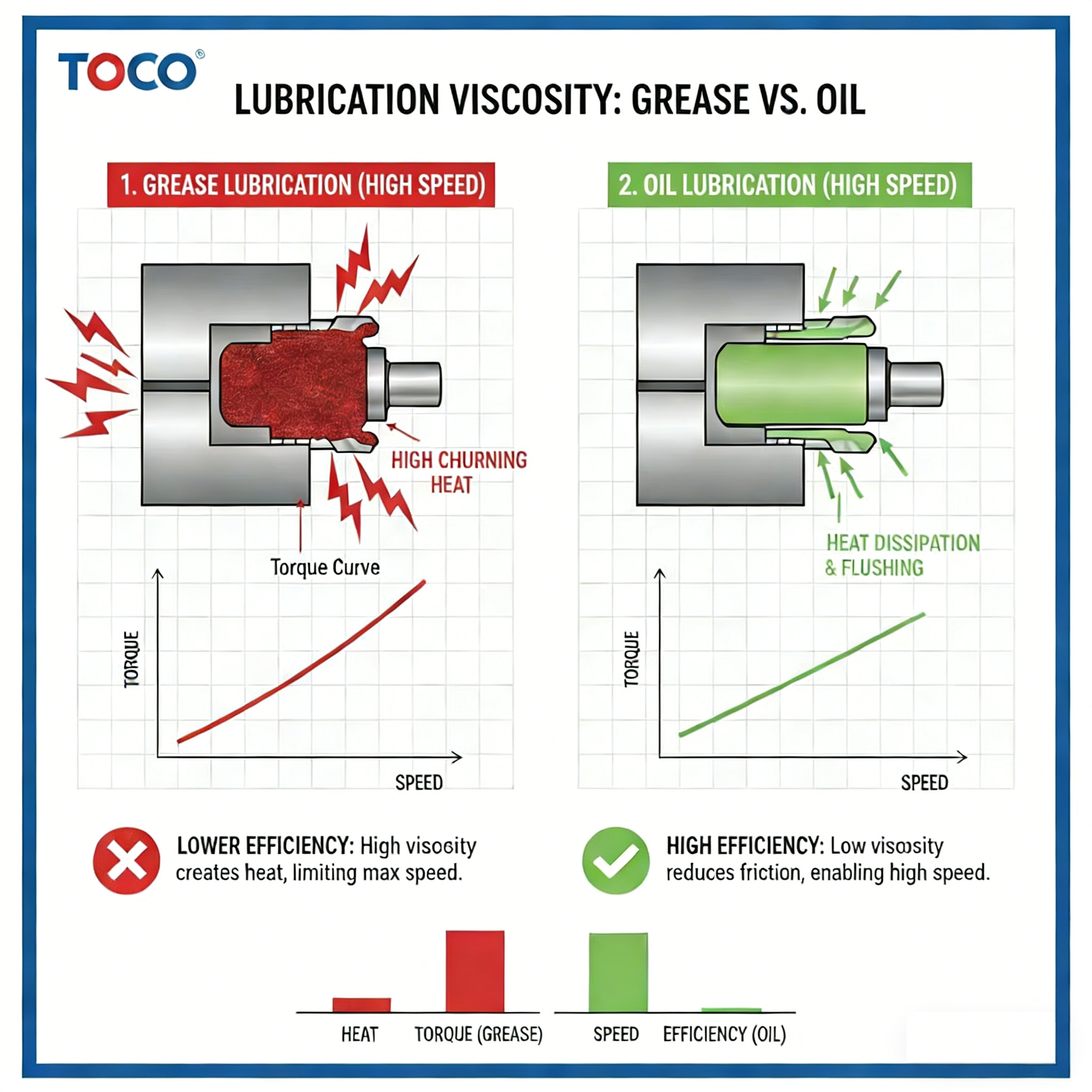

• Cons: * Higher "Churning" Heat: At very high speeds, the thickness of grease can cause internal heat buildup.

• Best For: Standard CNC machines, automation, and dirty environments.

2. Oil Lubrication: The High-Performance Choice

Oil is used when speed and cooling are the priorities. It is almost always delivered via an automated lubrication system.

• Pros: * Superior Cooling: The liquid flows easily, carrying heat away.

  • Flushing Action: Oil can "wash" tiny contaminants out of the ball tracks.

  • Lower Torque: Less resistance than grease, allowing for faster acceleration.

• Cons: * Difficult to Contain: Requires complex piping and seals; can be "messy."

  • Constant Supply Needed: Must be dripped or misted continuously.

• Best For: High-speed machining centers, 24/7 semiconductor equipment, and high-temperature zones.

3. The "Hidden Danger": Lubricant Compatibility

Never mix two different types of grease. If you add a Lithium-based grease to a carriage that already contains an Aluminum-complex grease, they can chemically react and "de-gel." This turns the lubricant into a useless, hard wax or a runny liquid that leaks out.

• TOCO Tip: Always stick to the same soap-base specified in your manual. If you must switch, the carriage must be completely flushed with solvent first.

4. When to Re-Lubricate?

A common mistake is over-lubricating (which causes heat) or under-lubricating (which causes wear).

• The Rule of Thumb: * Linear Guides: Every 100km of travel or every 3–6 months.

  • Ball Screws: Every 50km of travel or every 2–3 months.

• Visual Check: If the rail looks "dry" or has a dull finish, it needs lubrication immediately. A healthy rail should have a thin, translucent "wet" sheen.

5. Specialized Environments

• Cleanrooms: Use low-fuming synthetic grease to prevent particles from contaminating the air.

• Food Grade: Use FDA-approved H1 greases (as discussed in Article #18).

• Vacuum: Use specialized "Low Outgassing" lubricants.
