Introduction: Where Does the Noise Come From?

In a linear system, noise is primarily caused by two factors: vibration and collision. As balls or rollers circulate through the carriage, they collide with each other and the end-caps, creating a metallic "whirring" or clicking sound. At high speeds, this can escalate into a high-pitched whine.

To build a "silent" machine, TOCO utilizes specialized hardware and installation techniques to dampen these acoustic signatures.

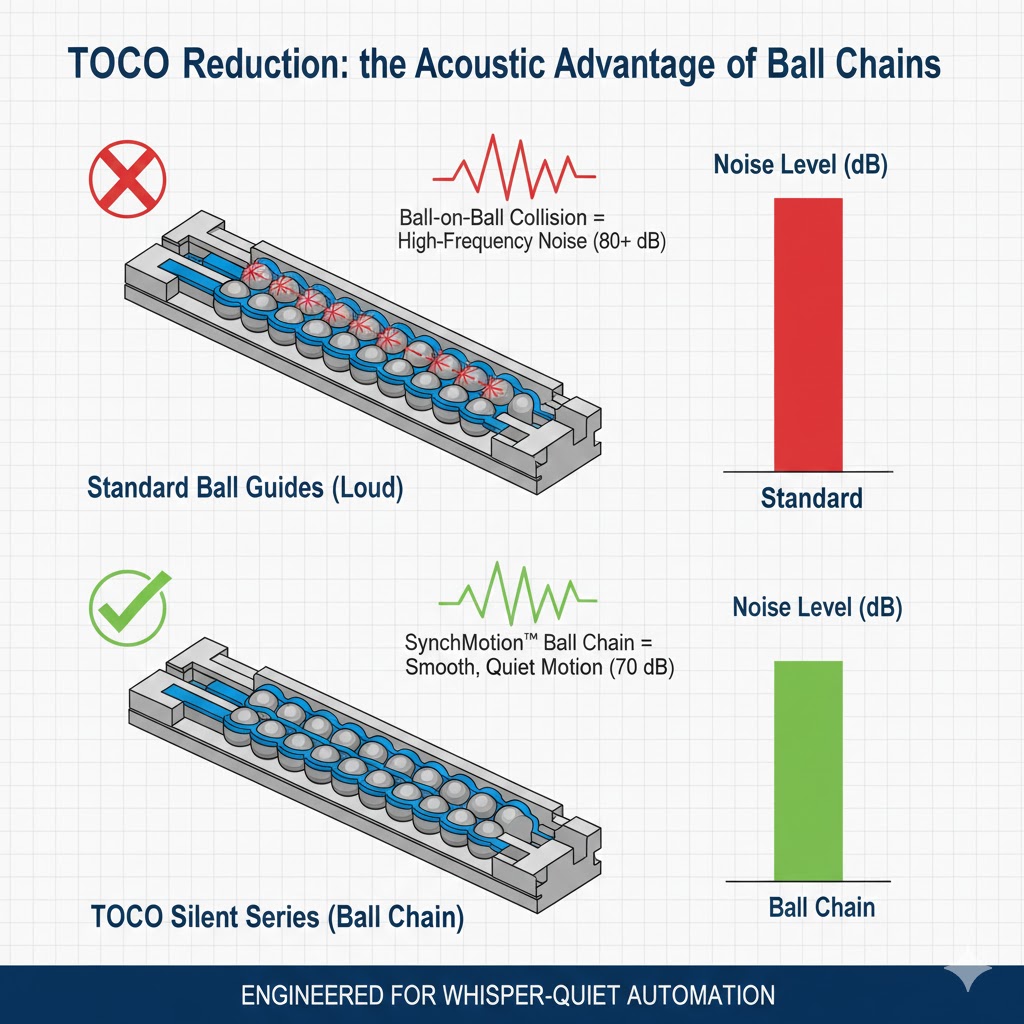

1. The "Ball Chain" Advantage (SynchMotion™)

The single most effective way to reduce noise is to prevent the balls from touching each other.

• Standard Guides: Balls rub against each other in opposite directions, creating friction and "clicking" noise.

• TOCO Ball Chain Series: A flexible plastic spacer (chain) keeps each ball separated. This eliminates ball-on-ball collision and creates a smooth, continuous flow.

• Result: A noise reduction of 5–10 dB compared to standard guides, and a much "softer" acoustic profile.

2. Acoustic Dampening via Mounting

Sometimes the "noise" isn't coming from the rail, but from the machine frame acting like a speaker.

• Dampening Plates: Placing a thin layer of specialized elastomer (rubber-like material) between the TOCO rail and the mounting base can decouple vibrations.

• Resonance Avoidance: If a motor's frequency matches the natural frequency of the ball screw, the noise will amplify. Using a flexible "oldham-style" or "disc" coupling can help break this vibration path.

3. Optimized Recirculation Paths

Noise is often generated when the balls transition from the loaded zone to the return tube.

• Plastic Return Tubes: TOCO's silent series uses high-performance synthetic resins for the internal return paths instead of metal. This "muffles" the impact of the balls as they move through the carriage.

• Tangent Entry: Engineering the raceway so the balls enter at a tangent (a gentle curve) rather than a sharp angle significantly reduces the "clack" heard at high velocities.

4. Lubrication as a Sound Barrier

The thickness (viscosity) of your grease acts as a cushion.

• Damping Grease: High-viscosity "acoustic" greases are designed specifically to coat the balls in a thick film that absorbs the energy of microscopic impacts.

• The Trade-off: While thicker grease is quieter, it increases "breakaway torque" (the force needed to start moving).

5. Installation Tip: Alignment is Silence

A misaligned system is a noisy system. If two rails are not perfectly parallel, the carriages will "bind," forcing the balls against the side walls of the raceway. This creates a grinding sound.

• The Test: If you can "hear" the pitch change as the carriage moves from one end of the rail to the other, your alignment is likely off.
