Introduction: Defying the Footprint

Standard linear guides require a rail that is at least as long as the desired travel distance. However, when space is limited (like inside a vehicle or a compact cabinet), you cannot have a rail sticking out into the aisle.

Telescopic rails solve this by using multiple sliding segments that nest inside one another, allowing for an extension that can reach up to 200% of the closed length.

1. Partial vs. Full vs. Over-Extension

Choosing the right telescopic slide depends on how much "reach" you need:

• Partial Extension: The drawer or component extends roughly 50-75% of its length. These are the most rigid and cost-effective.

• Full Extension (100%): The moving element travels its entire length, allowing full access to the payload.

• Over-Extension (150%+): The slide extends further than its own length. These are common in specialized maintenance cradles where a component must be pulled completely clear of a housing.

2. Load Ratings and "Deflection"

Unlike a standard linear guide supported by a flat base, a telescopic rail is a cantilevered beam. As it extends, gravity pulls down on the tip.

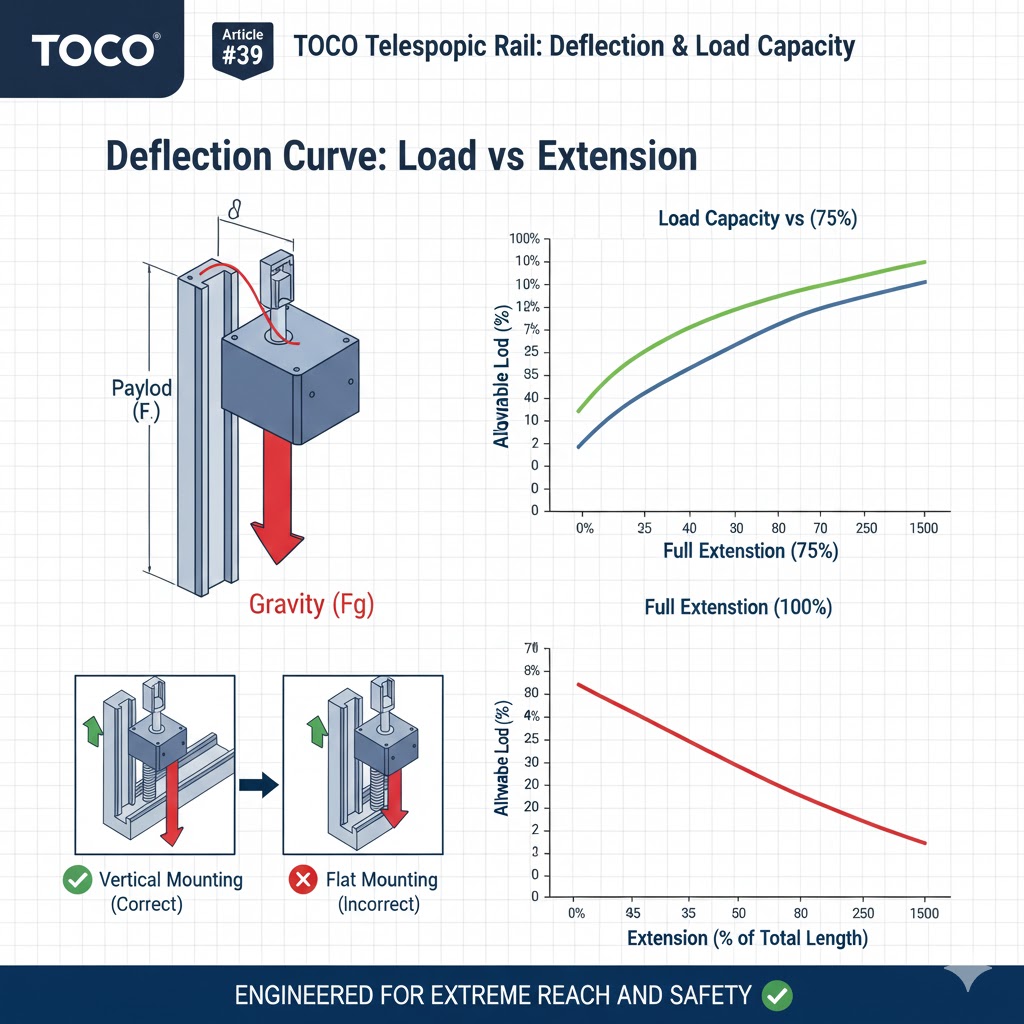

• The Deflection Factor: Even high-quality TOCO telescopic rails will "flex" slightly at full extension. It is critical to calculate the load at the furthest point to ensure the rail doesn't permanently bend.

• Vertical vs. Horizontal: Telescopic rails are designed to be mounted vertically (on their side). Mounting them "flat" (like a floor slide) drastically reduces their load capacity by up to 60-80%.

3. Material Choices: Steel vs. Aluminum

• Cold-Rolled Steel: The standard for industrial use. It offers the best load-to-cost ratio and high rigidity.

• Aluminum: Used in aerospace or mobile robotics where weight is a primary concern. Aluminum slides are lighter but have a higher deflection rate.

• Stainless Steel: Vital for outdoor battery trays or food-grade storage to prevent corrosion-related jamming.

4. Synchronized vs. Non-Synchronized Movement

• Non-Synchronized: The segments move independently. One might pull out fully before the next starts moving. This can sometimes feel "jerky."

• Synchronized: Using internal cables or rack-and-pinion systems, all segments move simultaneously. This provides a much smoother, premium feel and reduces the peak force required to open the slide.

5. Specialized Locking Mechanisms

Safety is paramount with heavy telescopic loads:

• Lock-In / Lock-Out: Prevents the slide from moving during transit (vital for vehicles) or prevents it from accidentally closing while a technician is working on the extended equipment.

• Soft-Close Dampers: Prevents the "slam" effect when a heavy drawer is pushed back into the housing, protecting sensitive electronics.
