Introduction: Listen to Your Machine

A ball screw rarely fails without warning. Before a total breakdown, the system will "talk" to the operator through subtle changes in sound, heat, and precision. If you can identify these symptoms early, you can schedule maintenance during planned downtime rather than reacting to a midnight emergency.

Here are the four critical warning signs of ball screw wear.

1. The Audible Warning: Clicking, Grinding, or Humming

Noise is usually the first sign that the internal ball recirculation is failing.

• The "Clicking" Sound: Usually indicates a damaged ball or a cracked return tube. If a single ball is chipped, it will make a rhythmic "click" every time it enters the return circuit.

• The "Grinding" Sound: This is a sign of metal-on-metal contact due to a lack of lubrication. It means the thin film of oil has failed, and the balls are "scuffing" the raceway.

• High-Pitched Whine: Often indicates that the preload is too high or that the ball screw is misaligned (as discussed in Article #19).

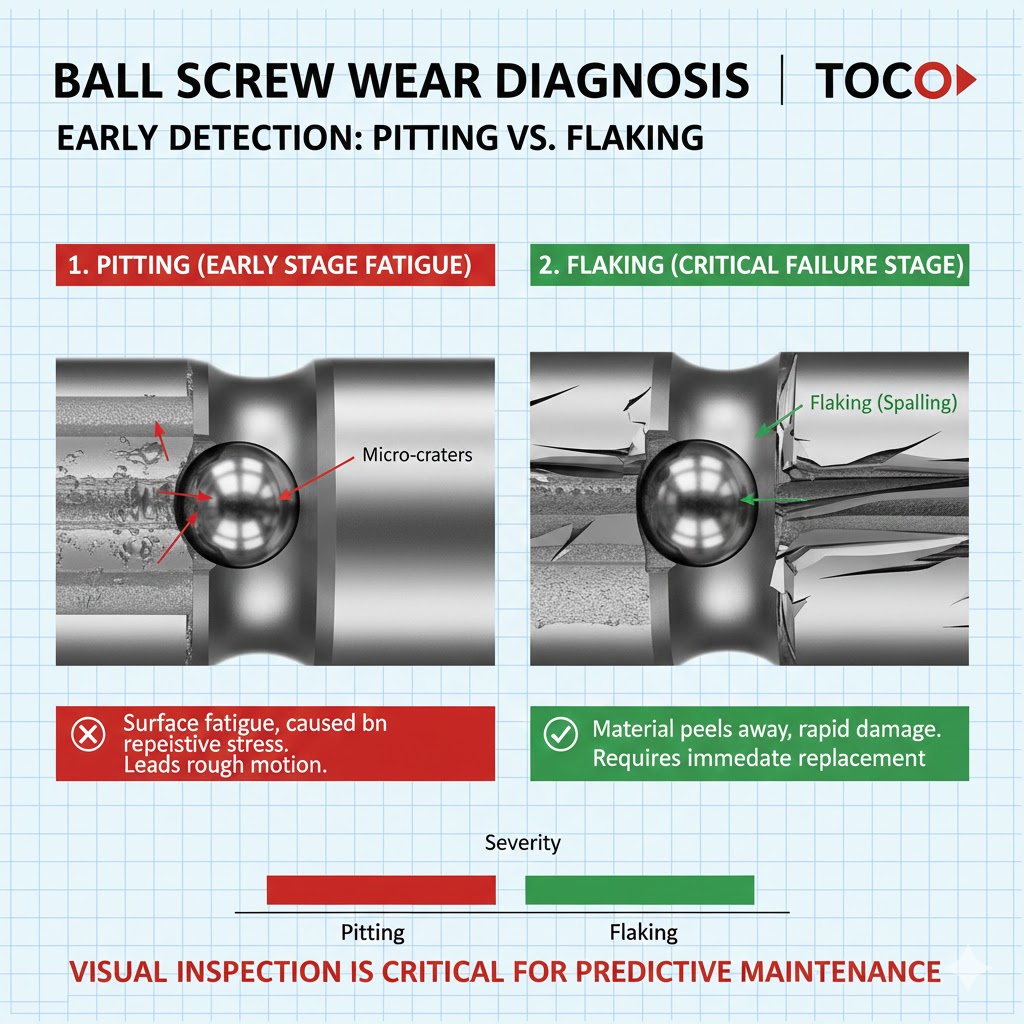

2. The Visual Warning: Pitting, Flaking, and Discoloration

During your monthly inspection, look closely at the screw shaft’s "valleys" (the raceways).

• Pitting: Small, microscopic craters on the surface. This is a sign of Fatigue. It means the metal is reaching the end of its natural life.

• Flaking (Spalling): When the surface of the steel begins to peel off in thin flakes. Once flaking begins, the screw must be replaced immediately, as it will rapidly destroy the nut.

• Discoloration (Brown or Blue): If the steel looks "burnt," the system is running too hot. This is usually caused by excessive friction or a lack of lubrication.

3. The Precision Warning: Increased Backlash

Backlash is the "play" or "lost motion" when the screw reverses direction.

• The Symptom: Your CNC machine is no longer hitting its tolerances. You tell the motor to move 10.000mm, but it only moves 9.985mm.

• The Cause: As the balls and raceways wear down, the gap between them grows. If your TOCO screw was "Zero-Backlash" and now has visible play, the internal preload has been lost.

4. The "Feel" Warning: Uneven Torque

If you disconnect the motor and turn the screw by hand, the motion should be silk-smooth.

• Rough Spots: If you feel "notches" or "catches" at specific points in the travel, there is likely debris trapped inside the nut or a "flat spot" on a ball.

• Increased Resistance: If the screw is harder to turn than it was last month, the grease may have hardened (gelled), or the seals may be dragging due to contamination.
