Introduction: The "Silent Killer" of Linear Guides

You’ve purchased high-precision TOCO linear guides, but upon installation, the carriage feels "stiff" or makes a grinding noise. The culprit is rarely the bearing itself; it is almost always misalignment.

When two rails are mounted in parallel, even a microscopic deviation in distance or height can cause binding—a state where internal friction spikes, heat builds up, and the service life of your system is cut by 80% or more.

1. The Three Types of Misalignment

To achieve smooth motion, you must combat three specific alignment errors:

• Parallelism Error (ΔP): The rails are not the same distance apart at the beginning and the end.

• Vertical Offset (ΔS1): One rail is mounted higher than the other.

• Angular Misalignment: The rails are tilted or "twisted" relative to each other.

2. The Consequences of "Binding"

If your rails are not aligned within the manufacturer's specified tolerances, you will experience:

1. Increased Starting Torque: The motor has to work harder just to get the load moving.

2. Uneven Wear: One side of the bearing balls takes the entire load, leading to rapid pitting and failure.

3. Vibration and Noise: The system will "shudder" as the carriage forcedly navigates the narrowing or widening path.

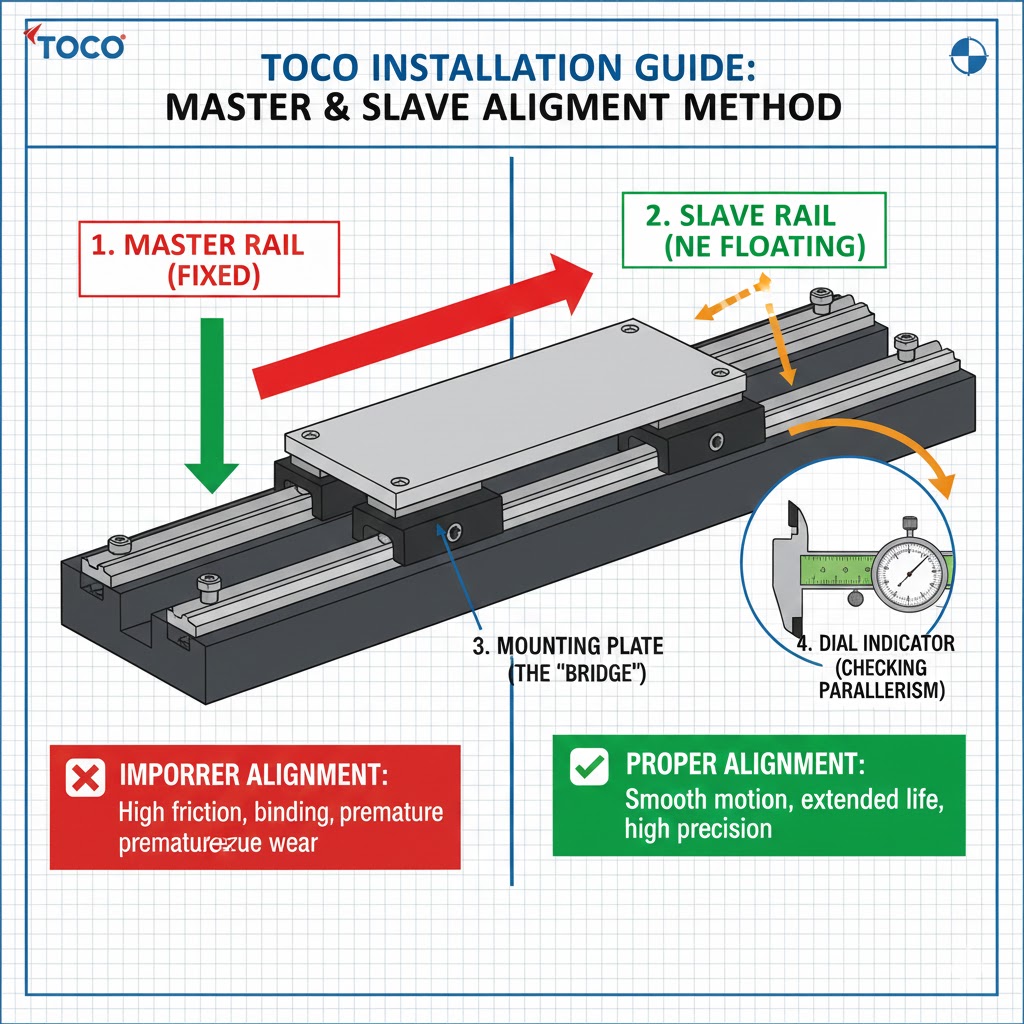

3. The "Master and Slave" Installation Method

For a dual-rail setup, professionals use the Master/Slave technique to ensure perfect alignment:

• Step 1: Secure the Master Rail: Mount the first rail against a machined reference shoulder and tighten it to the specified torque.

• Step 2: Temporary Mount the Slave Rail: Lightly bolt the second rail without tightening.

• Step 3: Use the Bridge: Connect the carriages of both rails with your mounting plate (the "bridge").

• Step 4: Self-Alignment: Slide the bridge from one end to the other. As it moves, it will naturally push the "slave" rail into a parallel position.

• Step 5: Final Torquing: Tighten the slave rail bolts progressively as you move the bridge along the path.

4. Design for Forgiveness: The DF Configuration

At TOCO, we understand that not every mounting surface is perfectly flat. Our standard linear guides often utilize a DF (Face-to-Face) circular arc design. * Why it matters: The DF configuration has a "self-aligning" capability. It can absorb small mounting errors or surface irregularities more effectively than the rigid DB (Back-to-Back) designs used by some competitors, ensuring smoother motion even in less-than-perfect conditions.

5. Pro-Tips for a Perfect Build

• Stone the Surface: Always use a sharpening stone to remove tiny burrs from the mounting surface before laying the rail.

• Use a Torque Wrench: Inconsistent bolt tension can "wave" the rail.

• Check with a Dial Indicator: A professional build should always be verified with a dial indicator along the full length of travel.
